MyIAD Vehicle GPS Tracker (MYT-08)


Feature List:

  • Real Time Tracking
  • AGPS & OTA
  • Intelligent working mode

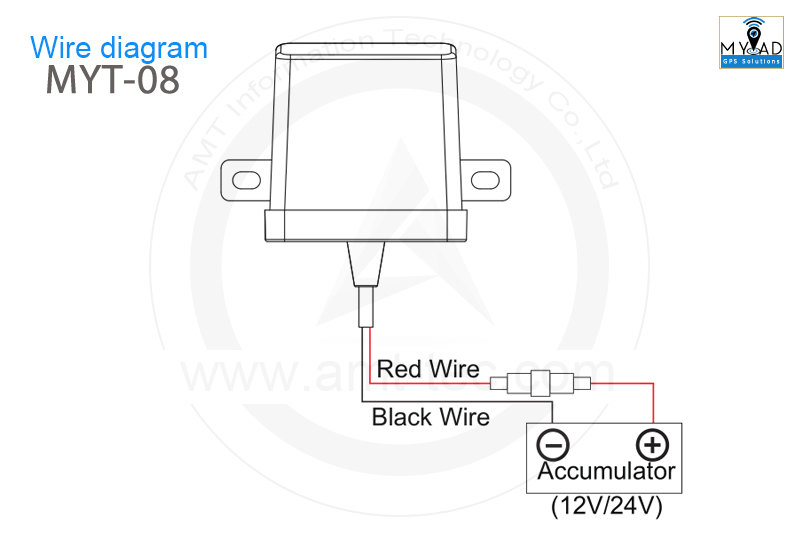

  • Supports DC 9 ~80V wide supply voltage
  • Geo Fence
  • Vibration Alarm
  • Displacement Alarm
  • Low Power alarm
  • LNA (Low Noise Amplifier)
  • SNR (Signal-Noise Ratio)
  • G Sensor (Gravity Sensor)
  • Waterproof 1967

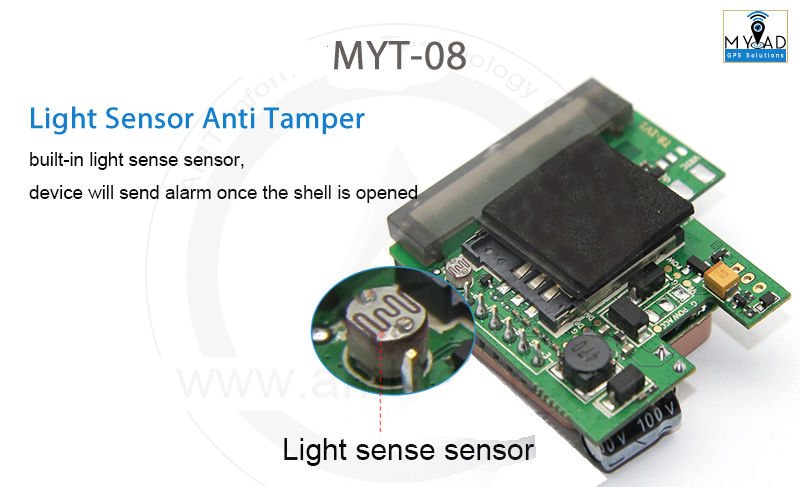

  • Light sensor alarm

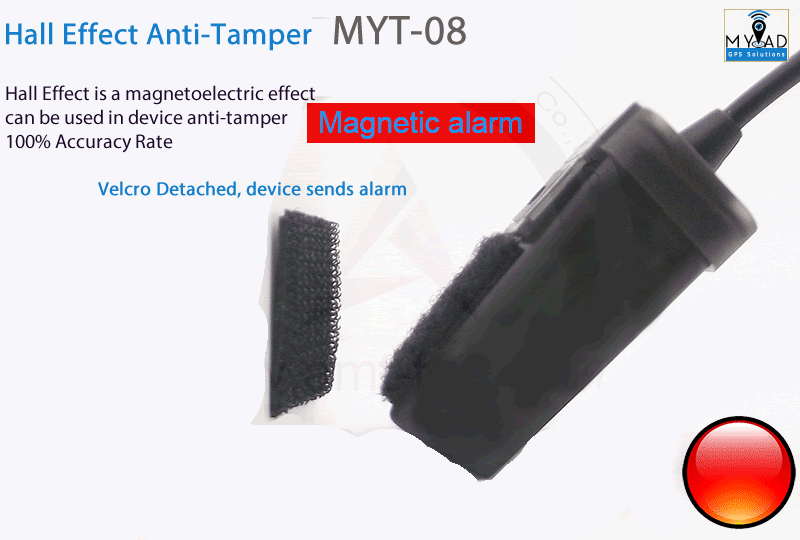

  • Hall effect anti tamper function

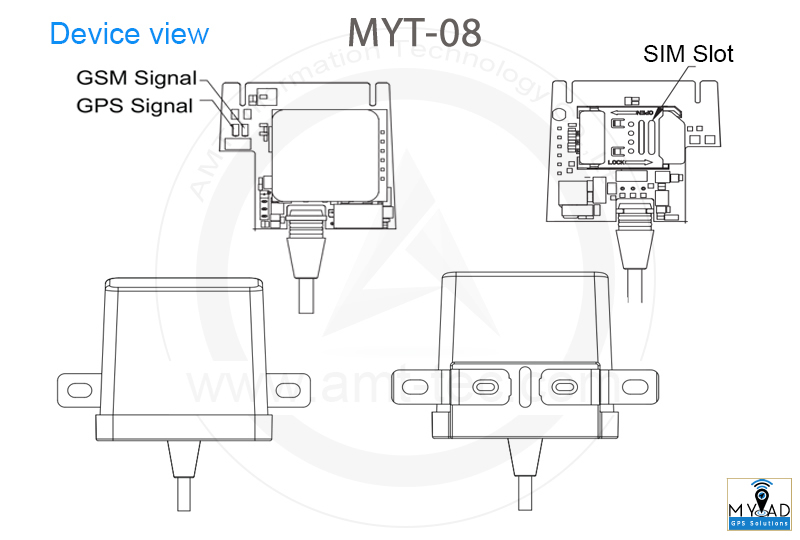

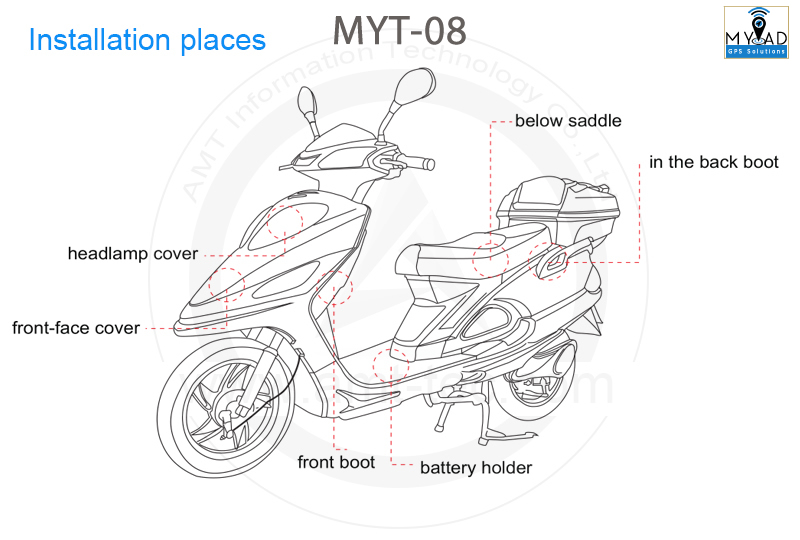

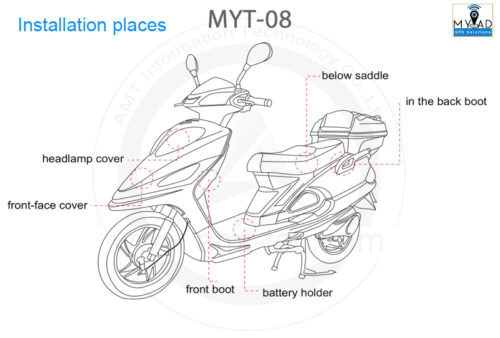

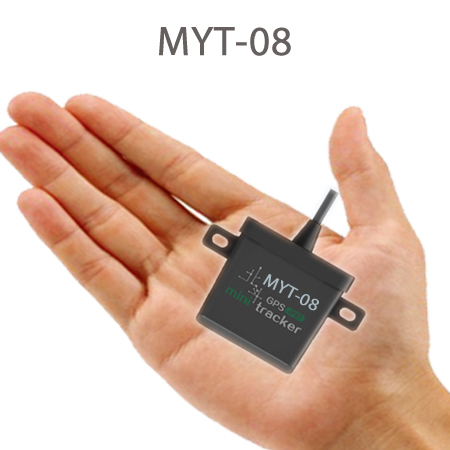

MYT-08 is suitable for fleet Management – Especially for the motorcycles and cars as MTY-08 is IP67 waterproof GPS Tracker. It owns the hall-effect anti-tamper function and light sense alarm that once the device is removed from the Velcro or the shell is opened, it will send alarm to avoid theft and alert monitoring center if tampering occurs.

Items Value
GSM frequency 850MHz/900MHz/1800 MHz/1900 MHz

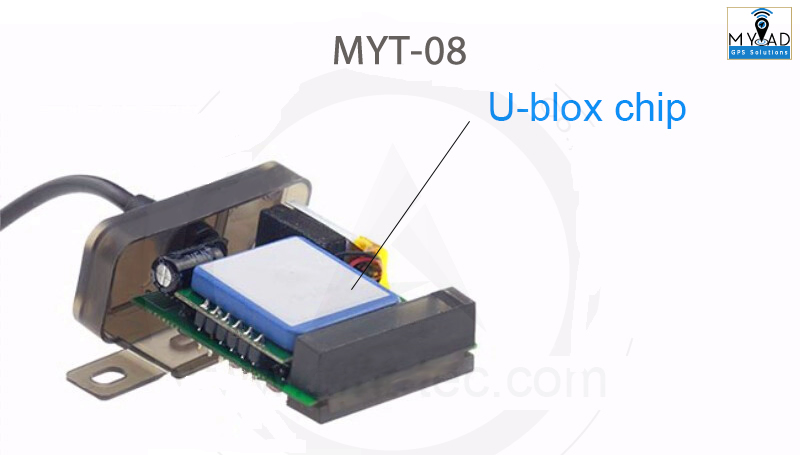

GPS chip Compatible with u-blox/BDS
GPRS Class 12,TCP/IP build in GSM MODULE                             .
Sensitivity of GPS -163dBm
GPS Accuracy 10m (open sky)
Cell ID Accuracy 50-2000m
Speed Accuracy 0.1m/s
Warm Start-up 2s (open sky)
Cold Start-up ≤35s (open sky)
A-GPS Start-up ≤25s (open sky)
3D G-Sensor ±8g(All Direction)
Backup Battery 42mAh/ 3.7V
Storage Temperature -40~+85゜C
Operating Temperature -20~+70゜C
Humidity 20%~80%RH

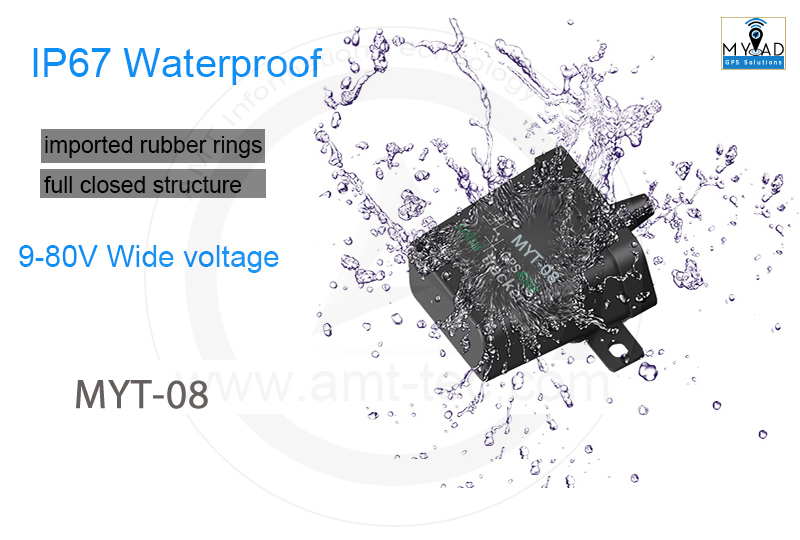

Waterproof level IP67 ( power connected, under water 0.5M for 1hour without problem)
Operating Current < 50mA
Sleeping Current < 3.5mA

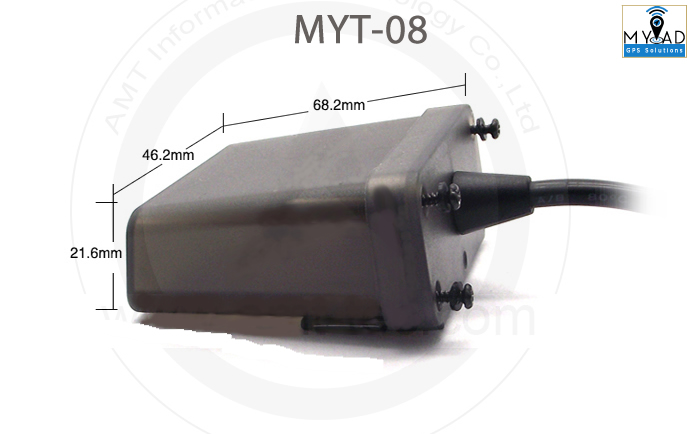

Dimensions 62.8*46.2*21.6mm
Net Weight 52g
